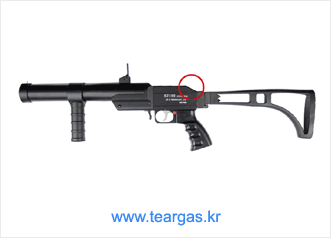

SJ-102 38mm TEAR GAS LAUNCHER
HOME > LAUNCHER > SJ-102 38mm TEAR GAS LAUNCHER
SJ-102 38mm TEAR GAS LAUNCHER
TRADE TERMS
Min. order quantity 100 units
Production capacity 700 units/month
Payment terms 30% T/T in advance, 70% balance after inspection
Packaging details Standard packing for export
Shipping port Busan, Korea
Origin Materials and technique are absolutely made in Korea

SPECIFICATION
Caliber 38mm Basic Length 694mm
Folded Length 425mm Barret Length 280mm
Height 157mm Weight 1.8kg
Materials Aluminum alloy Firing Method Manual, Single Cartridge
Trigger Nothing, automatic pulling the trigger Firing Principle Explosive
Method of Operation Top break Country of Origin South Korea
HS Code 9304.00.9000 Packing 4pcs/Box
Box Size(L * H* W) 850*550*270 U. Weight 4.1kg
Box Weight 16.40kg Shelf Life 7 years

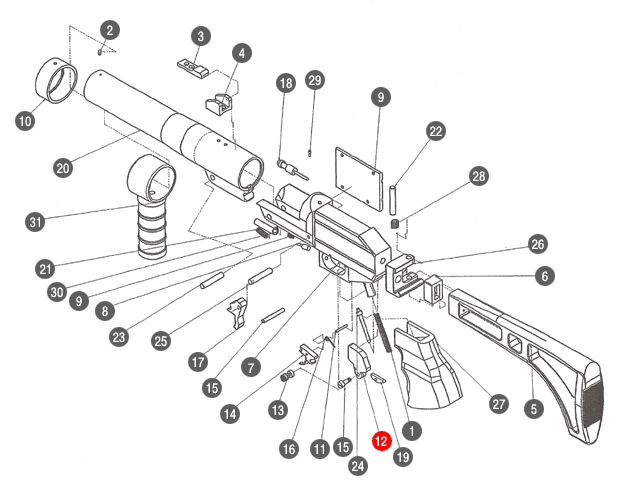

STRUCTURE & PARTS
01 Hammer spring 02 Front sight 03 Rear sight
04 Rear sight support 05 Synthetic butt plate 06 Butt plate folder B
07 Firing engine B 08 Firing pin 09 Firing engine cap
10 Muzzle cap 11 Trigger pin 12 Firing pin hammer (inside)
13 Trigger safety pin 14 Trigger 15 Hammer fixing bolt
16 Trigger spring 17 Barrel fixing 18 Firing nipple
19 Hammer key 20 Barrel 21 Empty shell ejection spring
22 Butt plate folder pin 24 Hammer spring support 25 Barrel lock fixing pin
26 Butt plate folder A 27 Rear grip 28 Butt plate folder spring
29 Firing pin bolt 30 Empty shell ejection lever 31 Front grip
HOW TO USE
Full the below lever Open the breech Load a shell Fire a shell
INTRODUCTION
The SJ-102 launcher is a single-shot, shoulder-fired launcher that fires a tear gas shell and rubber ball shells. The SJ-102 can fire a wide variety of 38mm, 40mm rounds, including explosive, anti-personnel, smoke, buckshot, flechette, and illumination.
Tear Gas Grenade Launcher are a great aid and highly effective in early dispersing and suppressing crowds such as riots, illegal gatherings, and mass demonstrations.
FEATURES
The SJ-102 launcher was intended to be used as close fire support for point and group area targets. The round is designed to be effective at penetrating windows, blowing up doors, producing casualties in groups of enemies, destroying bunkers, and damaging or disabling soft-skinned vehicles.
Its primary purpose is to engage enemies in dead space that cannot be reached by direct fire. In addition, the SJ-102 can be used as a crowd control weapon when equipped with the CS grenade.
It's a lightweight so saves the strength of user. The foldable butt plate makes the soldier can more easily use and carry it. In emergencies, it's convenience makes it easier to respond early and quickly to riots.
